12000 N Heavy Duty Linear Actuator

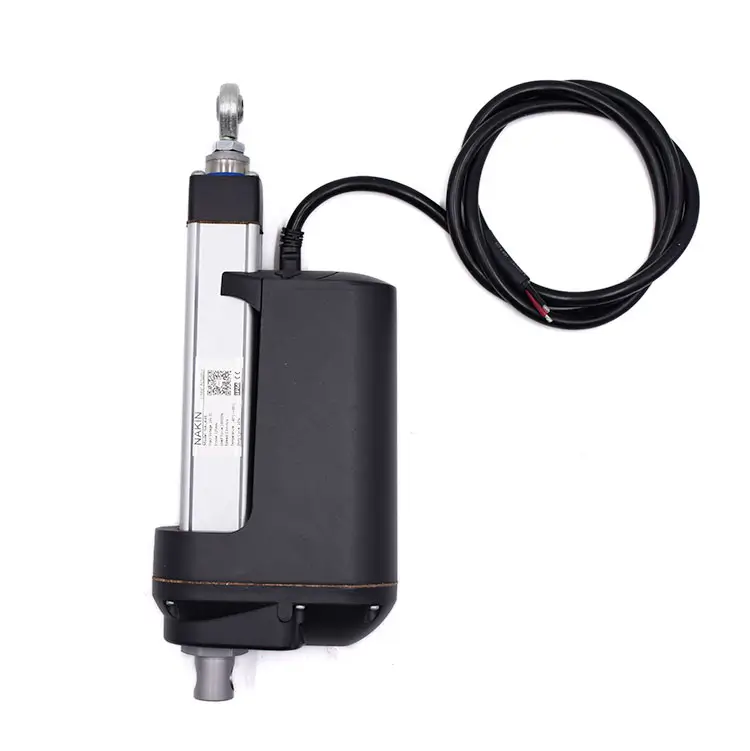

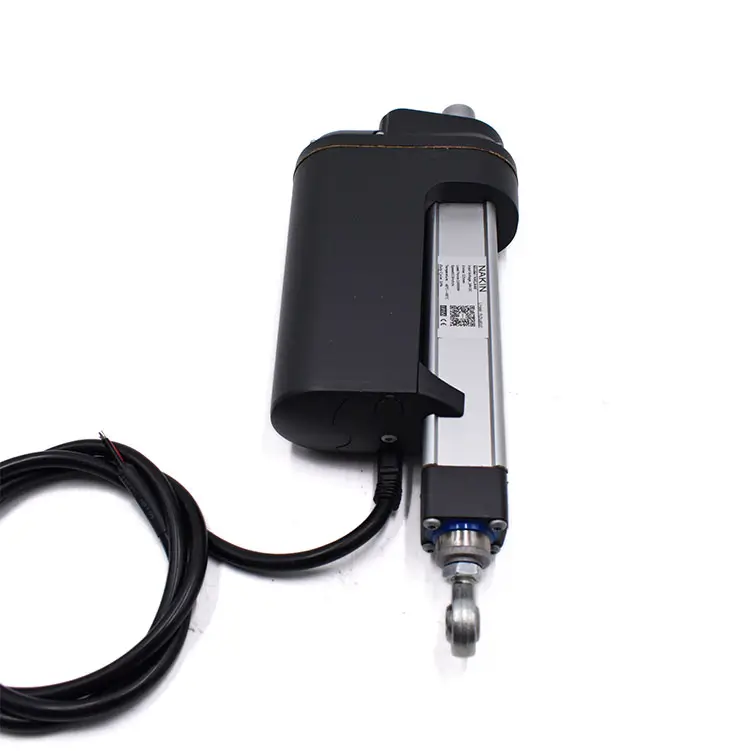

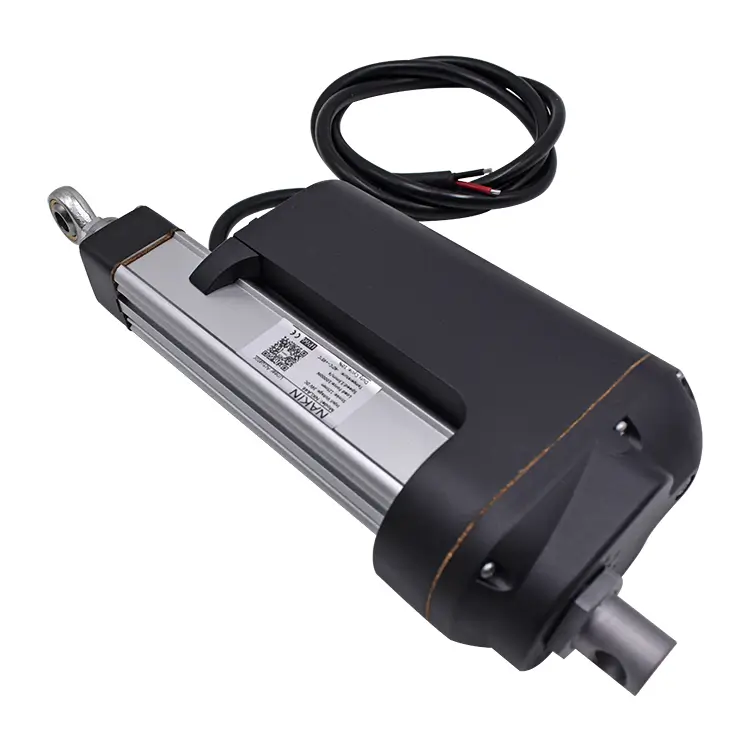

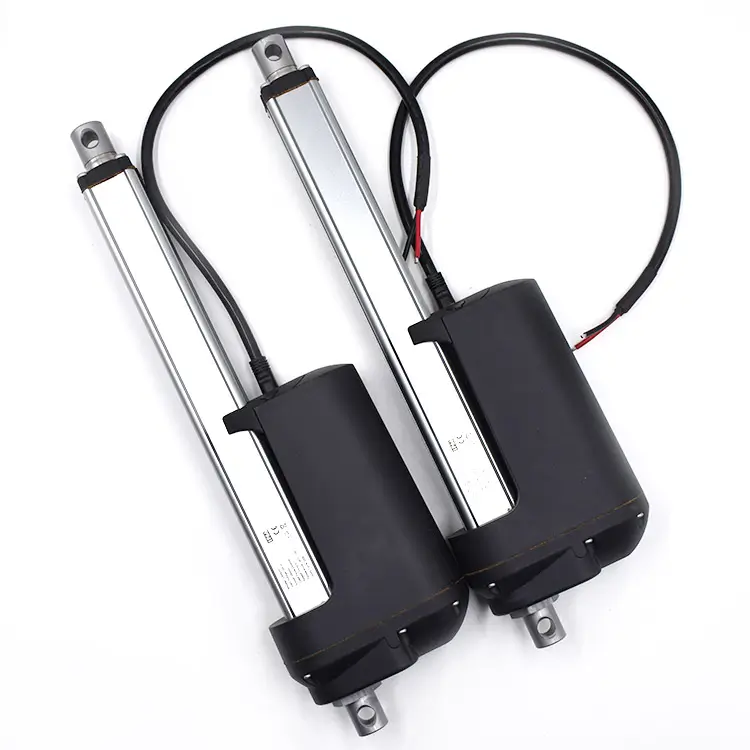

Introduction to Heavy Duty Linear Actuator NKLA46
The electric heavy duty linear actuator is designed for high-load applications and harsh working conditions. It performs reliably in industrial equipment, special vehicles, and environments with dust, water, or extreme weather. This actuator is the only model in our range with adjustable limit switches, giving users full control over the start and stop positions.
The NKLA46 high-force industrial linear actuator is one of the strongest units we offer. Its stainless steel shaft and metal gear system deliver up to 3000 lbs of push and pull force, and can hold loads up to 3500 lbs. With a high protection rating, it operates smoothly in dusty, wet, and demanding environments.
This actuator is widely used in manufacturing, renewable energy, solar tracking systems, agriculture, and industrial automation.
Video of Heavy Duty Linear Actuator NKLA46
Features
-
DC permanent magnet motor for strong efficiency and stable performance
-
Robust and durable construction designed for heavy-duty industrial use
-
Speed options from 6.5 mm/s to 60 mm/s to meet different application needs
-
Maximum load up to 12000 N for high-force linear motion
-
Wide operating temperature range: –40°C to 65°C
-
Duty cycle: 20% at full load under normal temperature
-
Built-in limit switches for precise stroke control
-
IP66 protection rating for dustproof and waterproof operation
-
Overload clutch protection to ensure safe and reliable performance
Technical Specifications of Industrial Linear Actuator NKLA46
| Product name | NKLA46 linear actuator linearantrieb actuador lineal lineaire actuator | ||||||||
| Load force(N) | 12000N | 11000N | 10000N | 7500N | 7000N | 6500N | 5000N | 4500N | 3200N |
| Full load speed(mm/s) | 4.5 | 6 | 7 | 9 | 9.5 | 11 | 14 | 13 | 24 |
| Stroke length (mm) | 50mm~600mm (option>600) | ||||||||
| Retracted length(mm) (mounting length ) |
Stroke +200mm (S<=300) , Stroke +250mm (300<S<=600) , Stroke +300mm (S>600) | ||||||||
| IP grade | IP66 | ||||||||
| Duty cycle | 25% , max 4 min. continuous use | ||||||||
| Limit Switches | Built in | ||||||||
| Color | Silver | ||||||||
| Option Function | Potentiometer or hall sensor | ||||||||

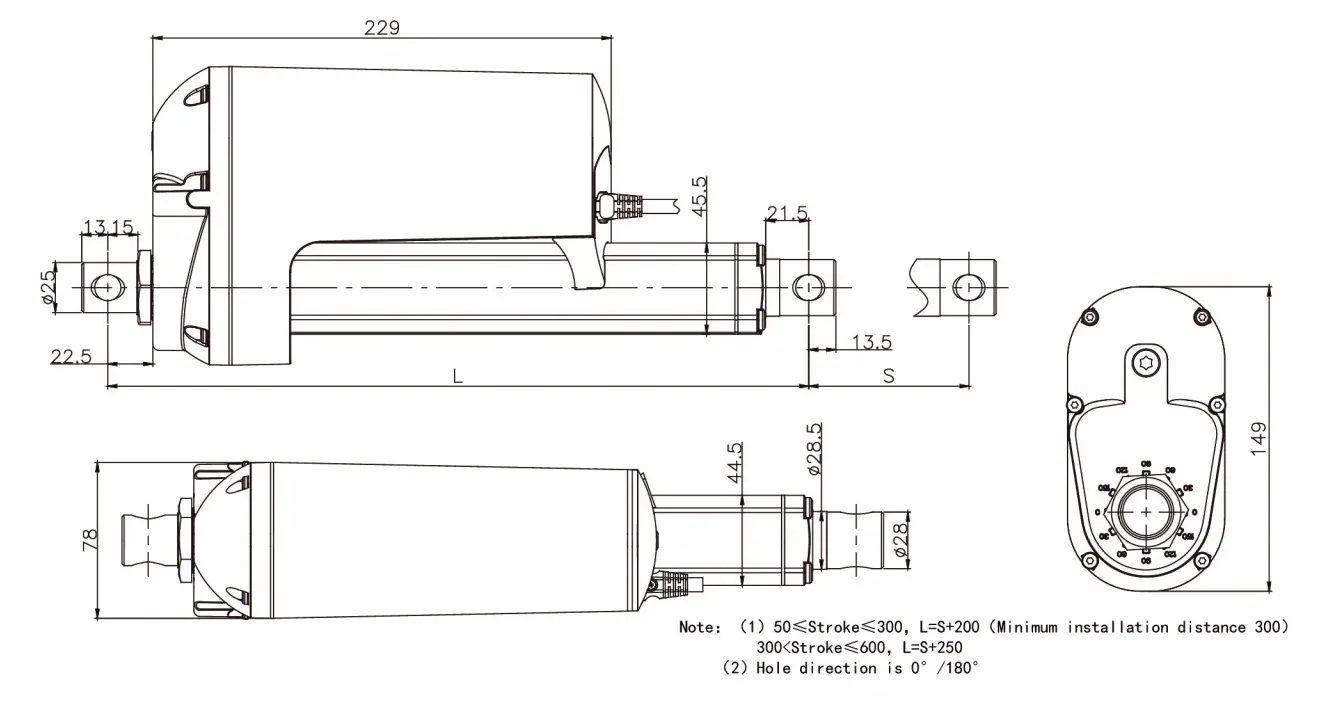

NKLA46 Heavy Duty Linear Actuator Mechanical Dimensions
Technical Datasheet – Heavy Duty Linear Actuator NKLA46
Applications
The NKLA46 Heavy Duty Linear Actuator is designed for demanding industrial applications, including:
-
Industrial Machinery – high-load automation and precise motion control
-
Renewable Energy – solar trackers and wind energy systems
-
Agriculture – heavy equipment and automated farm machinery
-
Material Handling – conveyors, lifts, and factory automation
-
Special Vehicles – construction, mining, and utility vehicles
-
OEM Projects – custom machinery requiring robust linear motion
FAQ
A1: The actuator can push and pull up to 12000 N, and hold loads up to 3500 lbs safely.
A2: The NKLA46 operates reliably between –40°C and 65°C.
A3: Yes, it features adjustable limit switches for precise start and stop positions.
A4: The actuator is IP66 rated, making it dustproof and waterproof for harsh environments.
A5: Yes, speed options range from 6.5 mm/s to 60 mm/s, depending on your application.
A6: The NKLA46 is ideal for industrial machinery, renewable energy, agriculture, material handling, special vehicles, and OEM equipment.
