24V 6000N Waterproof Linear Actuator – Heavy-Duty, Low-Noise, Reliable

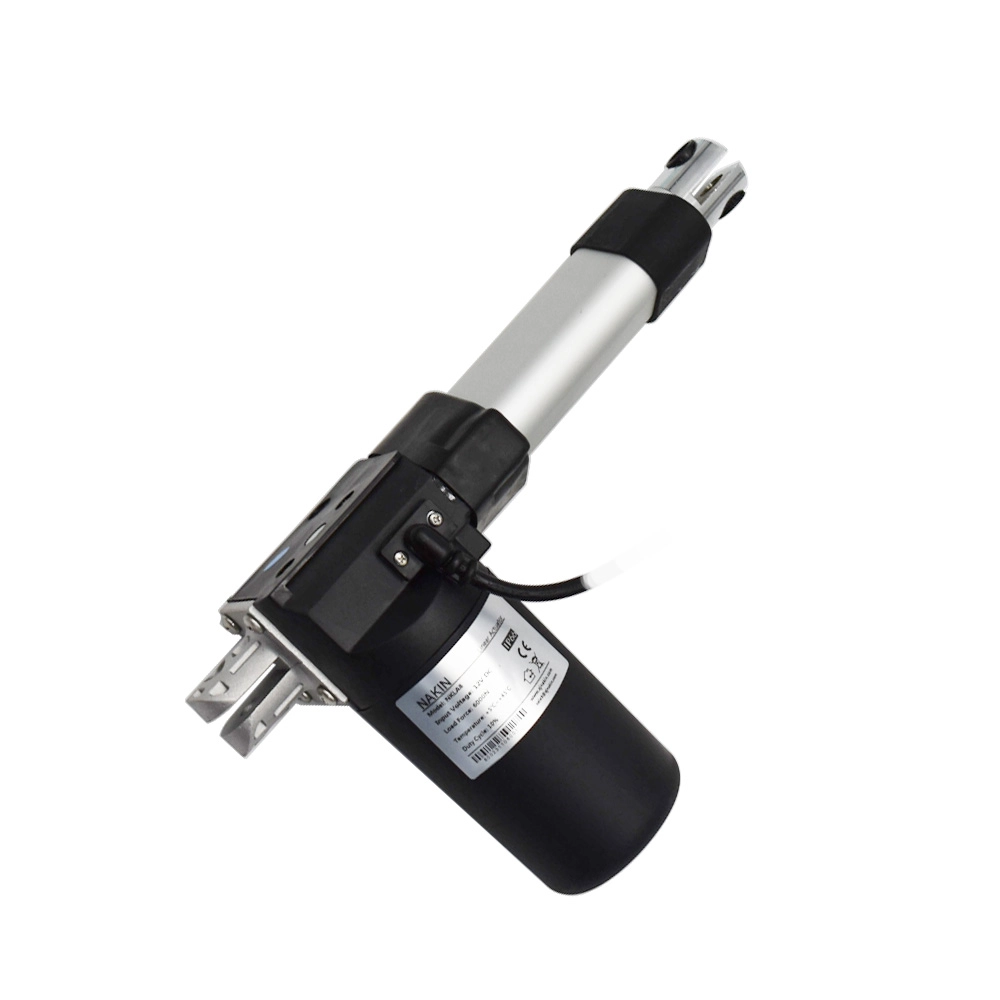

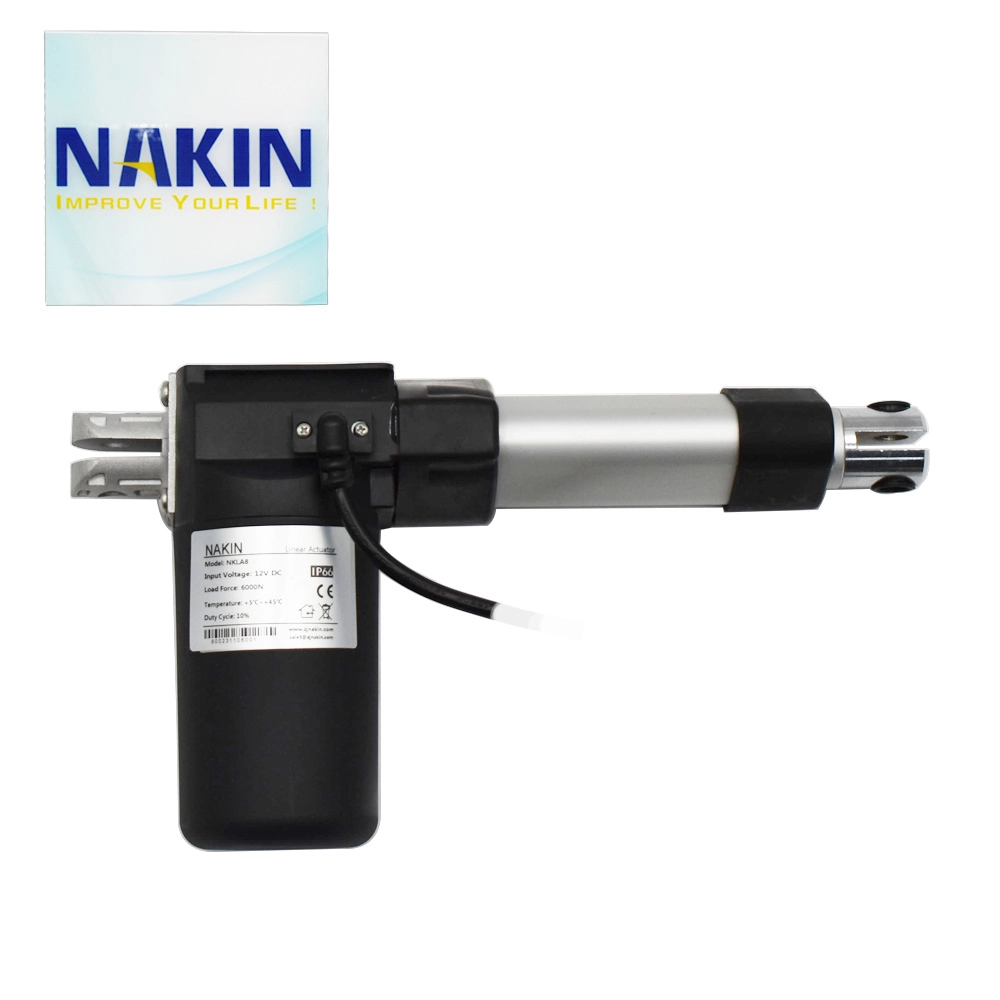

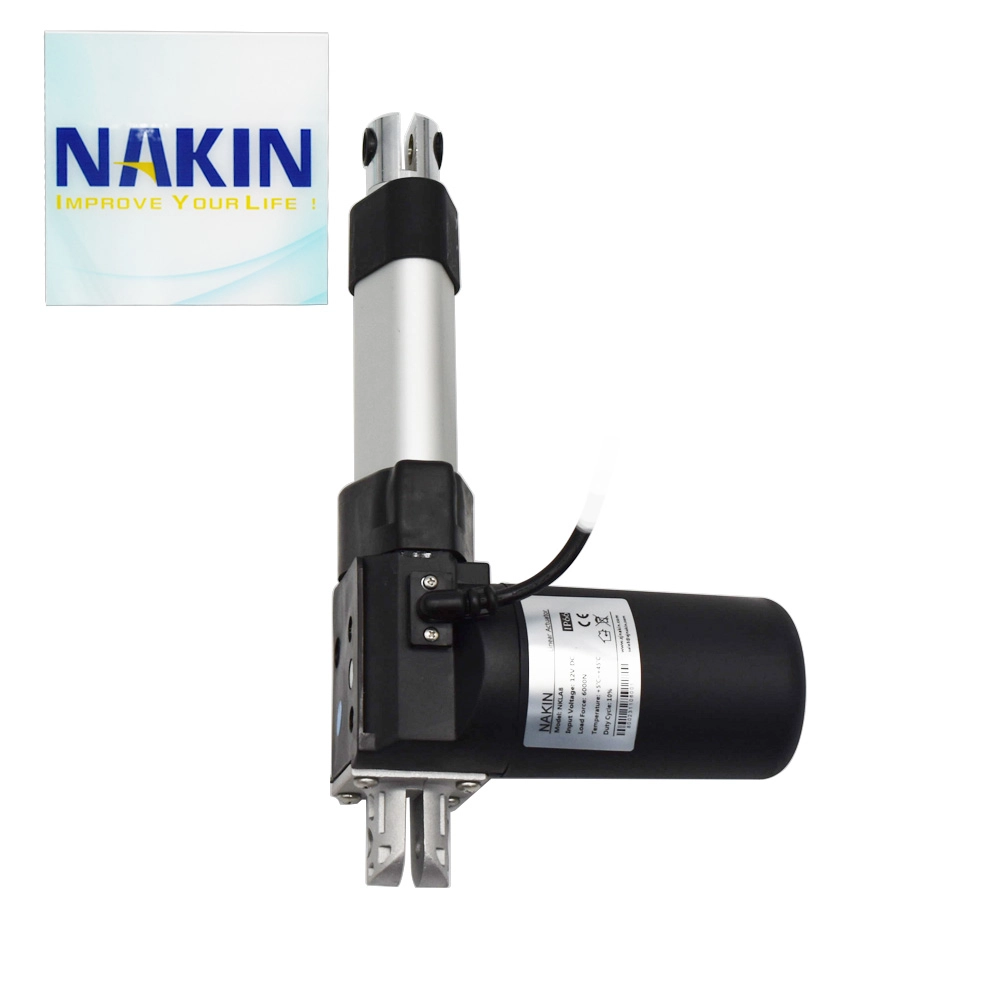

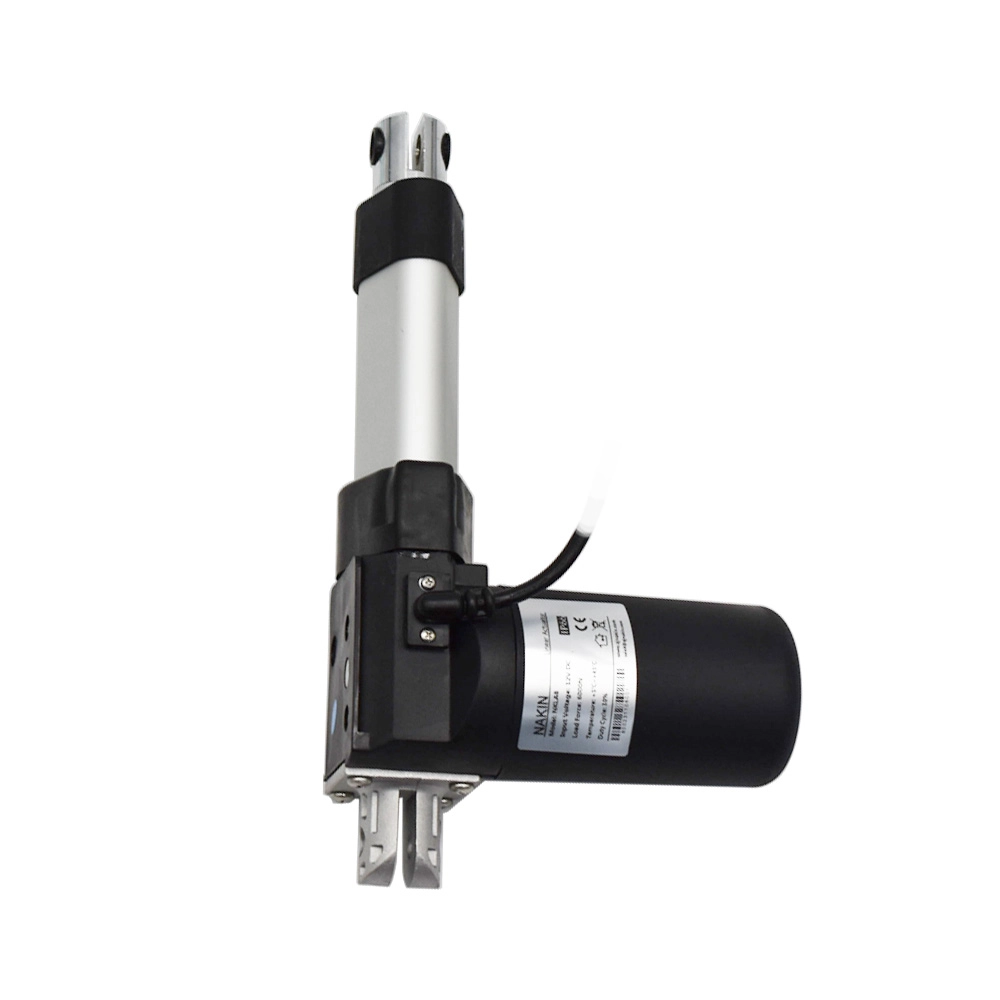

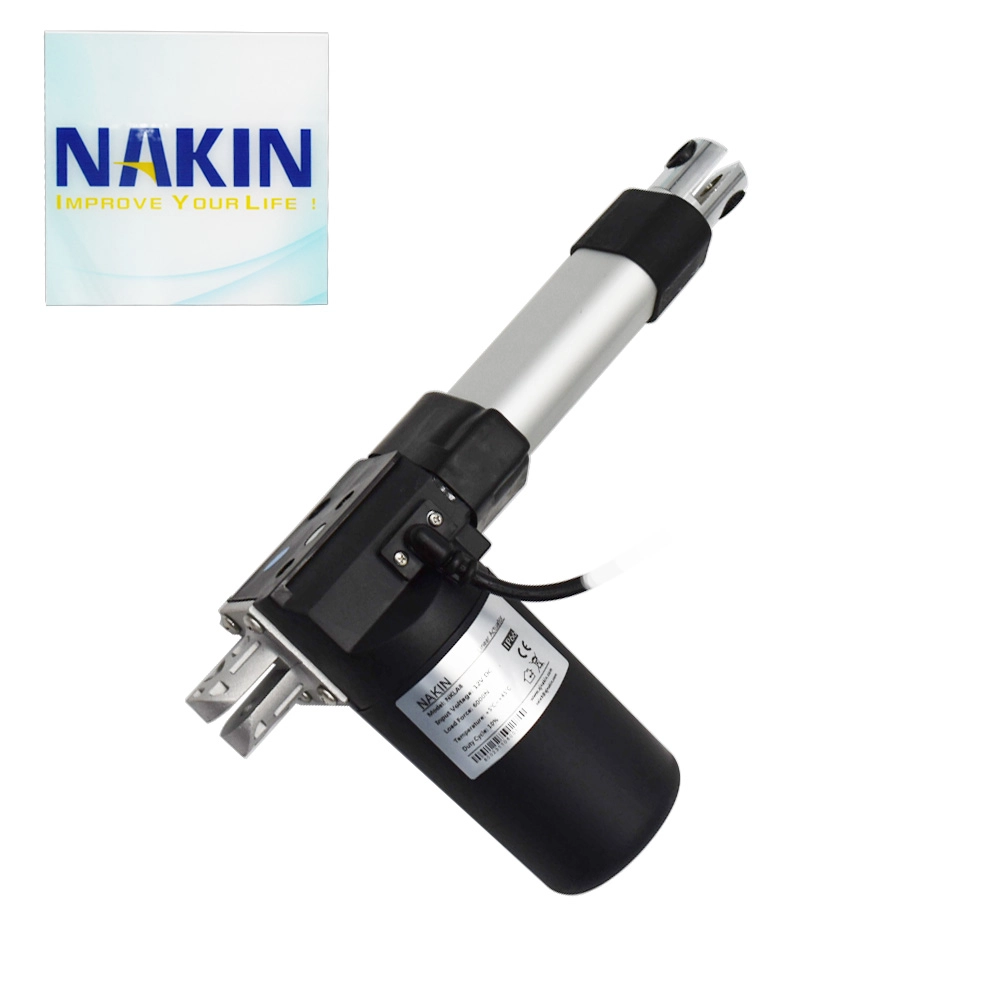

Introduction to Waterproof Linear Actuator NKLA8
The NKLA8 linear actuator is a high-performance, heavy-duty waterproof linear actuator designed for demanding applications. It features a strong structure, large load capacity, low operating noise, and an IP66 waterproof rating, making it suitable for outdoor and harsh environments.
With its durable design and reliable performance, the NKLA8 linear actuator is widely used in medical beds, nursing beds, operating beds, furniture systems, and industrial equipment.
The NKLA8 linear actuator can be equipped with Hall effect feedback, enabling precise synchronization, speed control, and position control. Hall feedback is essential for applications where multiple linear actuators must move in perfect sync.
Compared with standard models, the NKLA8 stands out for its high environmental protection level, low noise operation, and built-in feedback option. The Hall effect waterproof linear actuator is engineered to resist complete dust ingress and provides reliable protection against water exposure, ensuring long-term performance in demanding conditions.
Video of Waterproof Linear Actuator NKLA8
Features
-
Load Capacity (Push Force): 750N / 1000N / 1500N / 2000N / 3000N / 4000N / 6000N
-
Operating Voltage: 24V DC
-
Color Options: Grey or Black
-
Ingress Protection: Up to IP66, suitable for outdoor and harsh environments
-
Installation Dimensions:
-
L = 225 mm (Stroke ≤ 50 mm)
-
L = S + 175 mm (50 mm < Stroke < 400 mm)
-
L = S + 195 mm (400 mm ≤ Stroke < 600 mm)
-
-
Noise Level: ≤ 48 dB (ambient noise ≤ 40 dB)
-
Limit Protection: Built-in electrical limit switch
-
Feedback Options:
-
Hall effect sensor (optional)
-
Reed switch (optional)
-
-
Motion Type: Push-only (no pull) option available
-
Static Bending Moment: Lateral load not allowed
-
Duty Cycle: 10% (maximum 2 minutes continuous operation, followed by 18 minutes off)
-
Operating Temperature: +5°C to +40°C
-
Storage Temperature: -10°C to +50°C
Technical Specifications of Waterproof Linear Actuator NKLA8
| Dynamic Load Push(N) | 6000 | 4000 | 3000 | 2000 | 1000 | 750 |
| Dynamic Load Pull(N) | 4000 | 4000 | 3000 | 2000 | 1000 | 750 |
| Static Load Push*(N) | 6000 | 4000 | 3000 | 2000 | 1000 | 750 |
| Static Load Pull*(N) | 4000 | 4000 | 3000 | 2000 | 1000 | 750 |
| Input（VDC） | 24/12 | |||||
| Speed at Full Load(mm/s) | 3 | 4 | 6 | 9 | 20 | 25 |
| Stroke Length（mm） | 100-400( option>400) | |||||
| Mounting position | H type、V type and 45 degrees type | |||||
| Color | Black or Grey | |||||
| Limit Switch | Build-in | |||||
| Overload Protection | Yes | |||||
| Duty Cycle | 10%. max 2min. continuous use | |||||
| IP Grade | IP66 | |||||

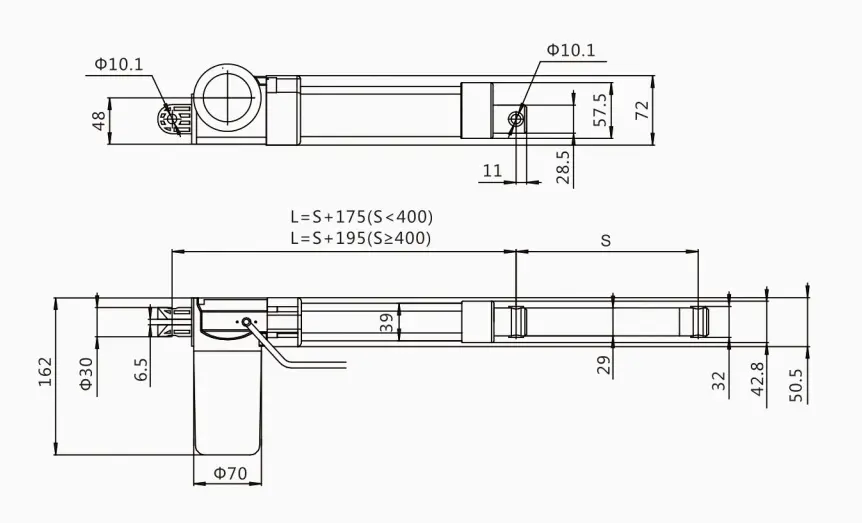

Waterproof Linear Actuator NKLA8 Mechanical Dimensions
Technical Datasheet of Waterproof Linear Actuator NKLA8
Applications
-
Medical Beds
Used in hospital beds, nursing beds, and operating beds where smooth, quiet, and reliable linear motion is essential. -
Nursing & Care Equipment
Ideal for home care beds and rehabilitation equipment requiring synchronized movement and precise position control. -
Furniture Systems
Suitable for adjustable furniture such as lifting tables, recliners, and height-adjustable platforms. -
Industrial Automation
Applied in industrial machinery, automated systems, and equipment requiring heavy-duty linear motion. -
Outdoor Equipment
The IP66 waterproof rating makes it suitable for outdoor devices exposed to dust, moisture, and splashing water. -
Marine & Harsh Environment Applications
Designed to withstand challenging environments where standard linear actuators may fail.
FAQ
Yes. The NKLA8 is a waterproof linear actuator with an IP66 protection rating, making it suitable for outdoor and harsh environments where dust and water exposure may occur.
The NKLA8 linear actuator supports push loads from 750N up to 6000N, depending on the selected model.
Yes. The NKLA8 can be equipped with Hall effect feedback, which allows for synchronization, speed control, and position control. This is essential for applications requiring multiple actuators to move simultaneously.
The standard version is designed for push operation. A push-only (no pull) option is available upon request. Please contact us to confirm suitability for your application.
The NKLA8 operates at a low noise level of ≤48 dB, making it suitable for medical, furniture, and indoor applications where quiet operation is required.
Yes. The actuator features built-in electrical limit switches, which help protect the motor and ensure safe operation.
The NKLA8 linear actuator offers Hall effect sensor and reed switch options, depending on your control and positioning requirements.
-
Lateral loads are not allowed
-
Proper alignment is required to avoid bending forces
-
Duty cycle must be observed to ensure long service life
