Tubular High Speed Linear Actuator
heavy duty tubular inline linear actuator
Introduction
NKLA34 tube linear actuator with compact and flexible installation advantage, can reach IP65 protection level. Besides, its life time is very long, more than 30,000 push and pull cycles. Therefore, it is widely used for side window, robot and other automatic industrial equipment.
The 500n small tubular linear actuator is designed to be compact and lightweight. It can fit into tight spaces and can be easily integrated into existing equipment.
tubular linear actuator can provide high performance, with fast speeds and high load capacity. It is capable of handling heavy loads and can operate in harsh environments.
These linear actuators require minimal maintenance, making them a cost-effective option for many applications. They are also designed to be long-lasting, reducing the need for frequent replacement.
Features
1.Maximum load 500N
2.aluminium alloyoutertube
3.33mm diameter
4.Temperature range : -25°C~65°C
5.built in limit switch
6.Self-locking function
| Product name | NKLA34 tubular linear actuator | |||
| Load force(N) | 500N | 400N | 300N | |
| No load speed(mm/s) | 5.5 | 8 | 10 | |
| Stroke length (mm) | 50mm~500mm | |||
| Retracted length(mm) (mounting length ) |
Stroke +235mm | |||
| IP grade | IP66 | |||
| Duty cycle | 10% , max 2 min. continuous use | |||
| Limit Switches | Built in | |||
| Color | Silver | |||

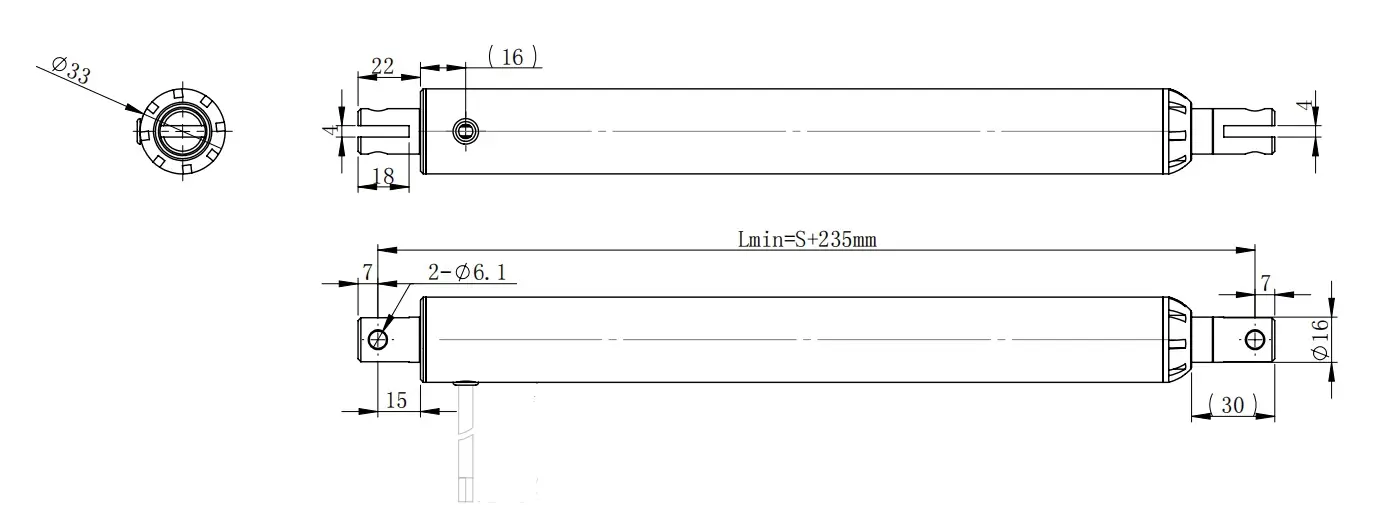

NKLA34 Dimensions
