Industrial Linear Actuator – 7000N Heavy Duty
Introduction to Industrial Linear Actuator
The NKLA33 heavy-load industrial linear actuator is designed for reliable push-and-pull motion in demanding industrial environments. Built with a stainless steel housing and shaft, it features preset limit switches and optional overheating protection, allowing the actuator to automatically stop during abnormal operating conditions.
This heavy duty linear actuator is easy to install and operate, making it an efficient alternative to hydraulic, pneumatic, and other traditional mechanical actuators. It is widely used in applications such as aircraft equipment, marine systems, vehicles, and industrial machinery.
The NKLA33 provides cost-effective high-force performance, delivering up to 2000 lbs of dynamic push/pull force and 4000 lbs of static holding force. A stainless steel drive shaft combined with metal gears ensures durability under continuous heavy loads. With a robust environmental protection rating, this industrial linear actuator is well suited for dusty, wet, and harsh working conditions.
Unlike standard models, the NKLA33 is the only actuator in our product range equipped with adjustable limit switches, giving users precise control over stroke start and stop positions for greater application flexibility.
Video of Industrial Linear Actuator
Features
-
High Load Capacity
Maximum dynamic load up to 7000N, delivering reliable performance for heavy-duty industrial linear actuator applications. -
Optimized Duty Cycle
20% duty cycle under standard operation; 10% duty cycle in high-speed configurations to ensure thermal stability and long service life. -
Exceptional Static Holding Force
Supports a maximum static load of 10,000N, maintaining position securely under heavy loads. -
Wide Operating Temperature Range
Operates reliably from -26°C to +65°C, suitable for demanding industrial environments. -
IP65 Protection Rating
Dust-tight and water-resistant design for operation in harsh and outdoor conditions. -
Multiple Voltage Options
Available in 12V, 24V, 36V, and 48V DC to accommodate various control systems. -
Preset Limit Switches
Integrated limit switches ensure accurate stroke control and protect the actuator from over-travel. -
All-Metal Gear Drive
Metal gear rolling mechanism provides high strength, reduced wear, and extended service life under continuous heavy loads. -
Rugged Industrial Construction
Robust design engineered for long-term reliability in heavy-duty industrial applications.
Technical Specification of Industrial Linear Actuator
| Product name | NKLA33 linear actuator linearantrieb actuador lineal lineaire actuator | |||||
| Load force(N) | 7000N | 6000N | 5000N | 4000N | 3000N | 2000N |
| Full load speed(mm/s) | 4 | 7 | 9.5 | 14 | 18 | 28.5 |
| Stroke length (mm) | 50mm~600mm (option>600) | |||||
| Retracted length(mm) (mounting length ) |
Stroke +250mm | |||||
| IP grade | IP65 | |||||
| Duty cycle | 25% , max 4 min. continuous use | |||||
| Limit Switches | Built in | |||||
| Color | Black | |||||
| Option Function | Hall sensor /potentiometer | |||||

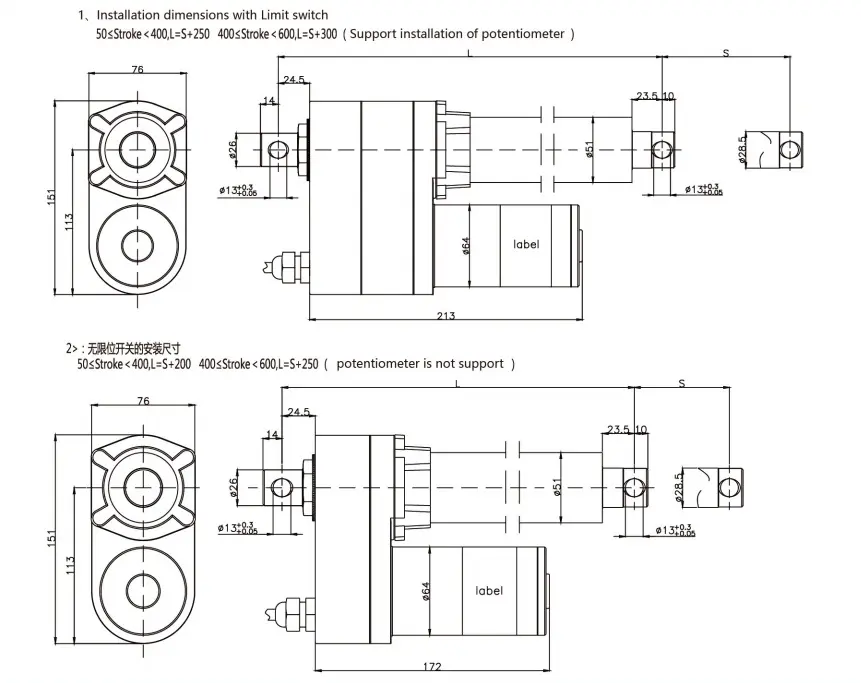

Industrial Linear Actuator NKLA33 Mechanical Dimensions
Technical Datasheet of Industrial Linear Actuator NKLA33
Applications
The NKLA33 Industrial Linear Actuator is designed for heavy-duty push and pull tasks in demanding environments where reliability and high force output are required. Typical applications include:
-
Industrial Automation Equipment
Used for lifting, positioning, clamping, and linear motion control in automated production lines and industrial machinery. -
Marine and Ship Systems
Suitable for hatch control, deck equipment, ventilation systems, and other marine applications requiring corrosion resistance and IP65 protection. -
Vehicle and Special-Purpose Automotive Systems
Applied in commercial vehicles, special-purpose vehicles, and mobile equipment for controlled linear motion under heavy loads. -
Aircraft Ground Support and Auxiliary Equipment
Ideal for non-flight critical aircraft systems and ground support equipment where precise and reliable actuation is required. -
Agricultural and Outdoor Machinery
Commonly used in agricultural equipment, feeders, gates, and outdoor machinery exposed to dust, moisture, and temperature variations. -
Replacement for Hydraulic and Pneumatic Actuators
A cost-effective electric alternative to traditional hydraulic and pneumatic systems, reducing maintenance complexity and improving energy efficiency.
FAQ
A1: The NKLA33 supports a maximum dynamic load of 7000N and a maximum static holding force of 10,000N, making it suitable for heavy-duty industrial applications.
A2: The actuator operates at a 20% duty cycle under standard conditions. For high-speed linear configurations, the recommended duty cycle is 10% to ensure reliable thermal performance and long service life.
A3: Yes. With an IP65 protection rating and a robust industrial design, the NKLA33 can operate reliably in dusty, wet, and harsh environments.
A4: The actuator is available in 12V, 24V, 36V, and 48V DC, allowing easy integration with various industrial control systems.
A5: Yes. The NKLA33 is equipped with preset limit switches to control stroke end positions and prevent over-travel, improving operational safety and reliability.
A6: The actuator is designed to operate within a temperature range of -26°C to +65°C, making it suitable for most industrial and outdoor applications.
A7: In many applications, yes. The NKLA33 heavy duty industrial linear actuator can replace hydraulic or pneumatic systems where high force, precise control, and reduced maintenance are required.
