Linear Motor Actuator
Introduction
Linear actuator is a device that converts the rotational motion of a low voltage DC motor into linear motion – that is push and pull movements. The electric linear actuator consists of a motor, a gear and a spindle including a nut. A special version of the linear actuator is the built-in actuator meant for integration in a customer guidance. A complete actuator system solution includes one or more linear actuators, a control box and a control device to operate the actuator .
Features
- 100% duty cycle , continue working
- Aluminium outer tube and stroke rod
- Protection IP54 or IP65
- 12 or 24 or 36 or 48VDC
- Preset limit switches
- Powder metal gears
- Aluminium alloy housing

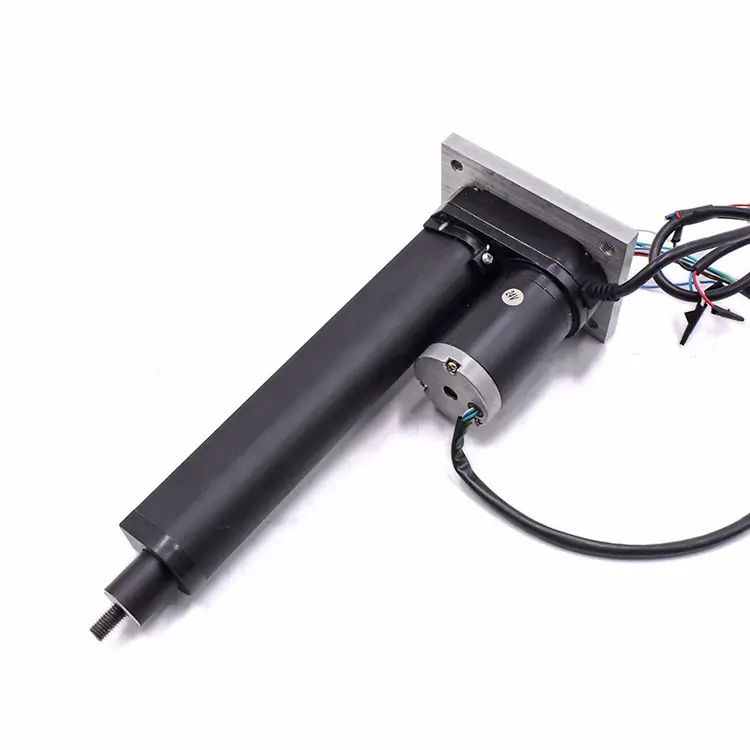

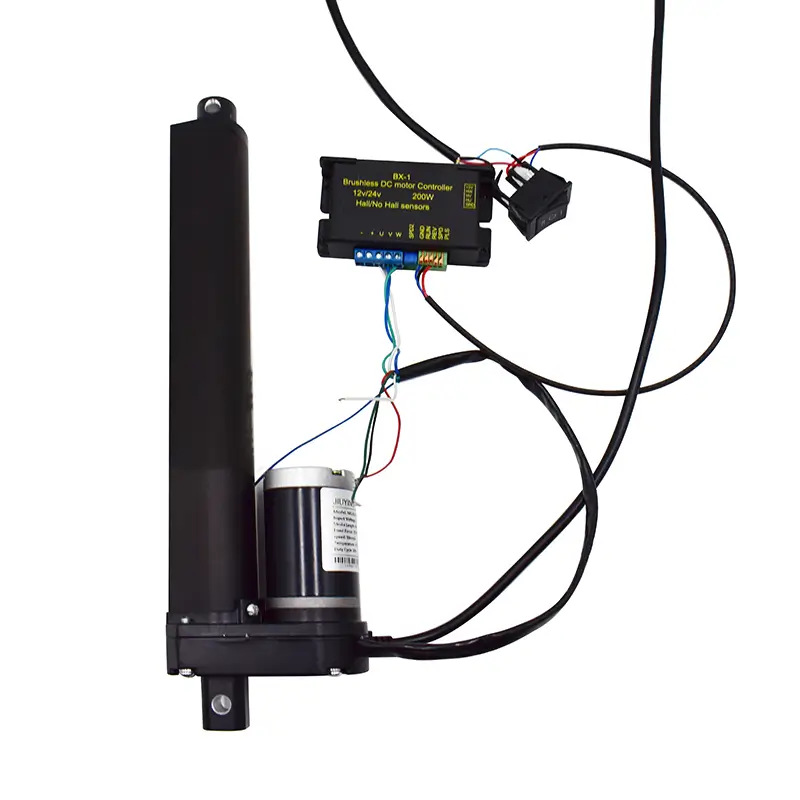

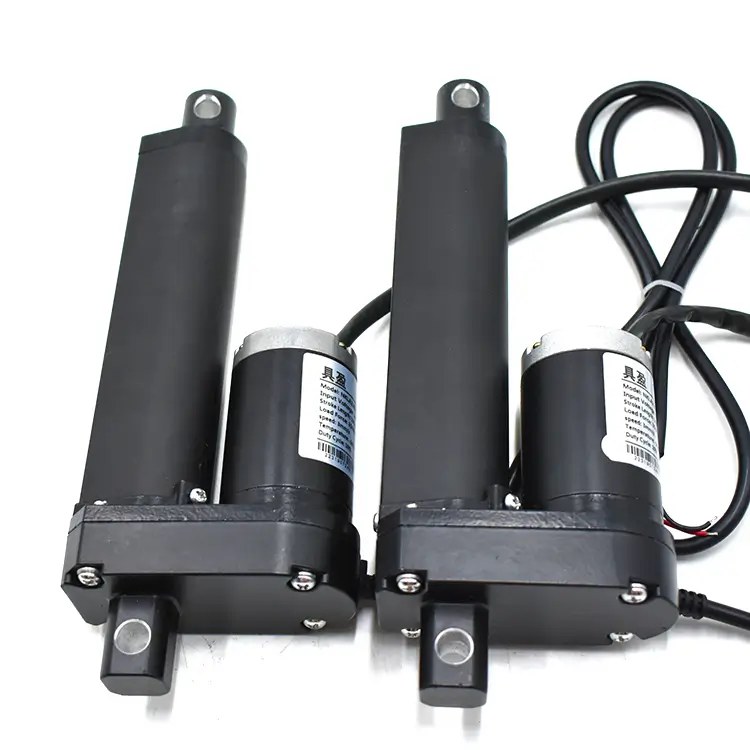

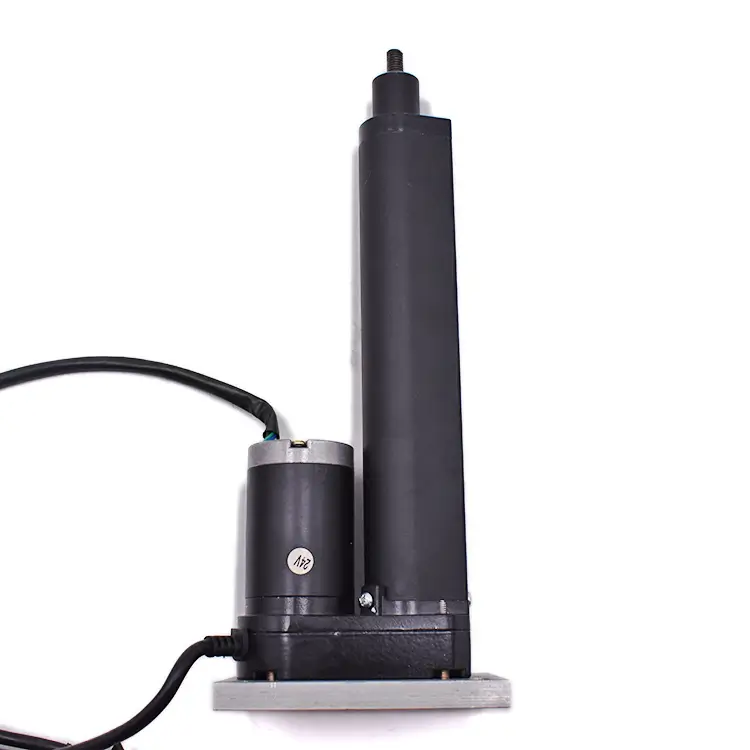

| Product name | NKLA22B-BL brushless dc motor linear actuator | |||
| Load force(N) | 3500N | 3000N | 2500N | 1000N |
| No load speed(mm/s) | 3 | 5 | 8 | 20 |
| Stroke length (mm) | 50mm~600mm (option>600) | |||
| Retracted length(mm) (mounting length ) |
Stroke +120mm | |||
| IP grade | IP54/IP65 | |||
| Duty cycle | 20% , max 4 min. continuous use | |||
| Limit Switches | Built in | |||
| Color | Black | |||
| Option Function | Hall sensor /potentiometer | |||
NKLA22B-BL Dimensions
