24V 600N chain actuator window opener
Introduction

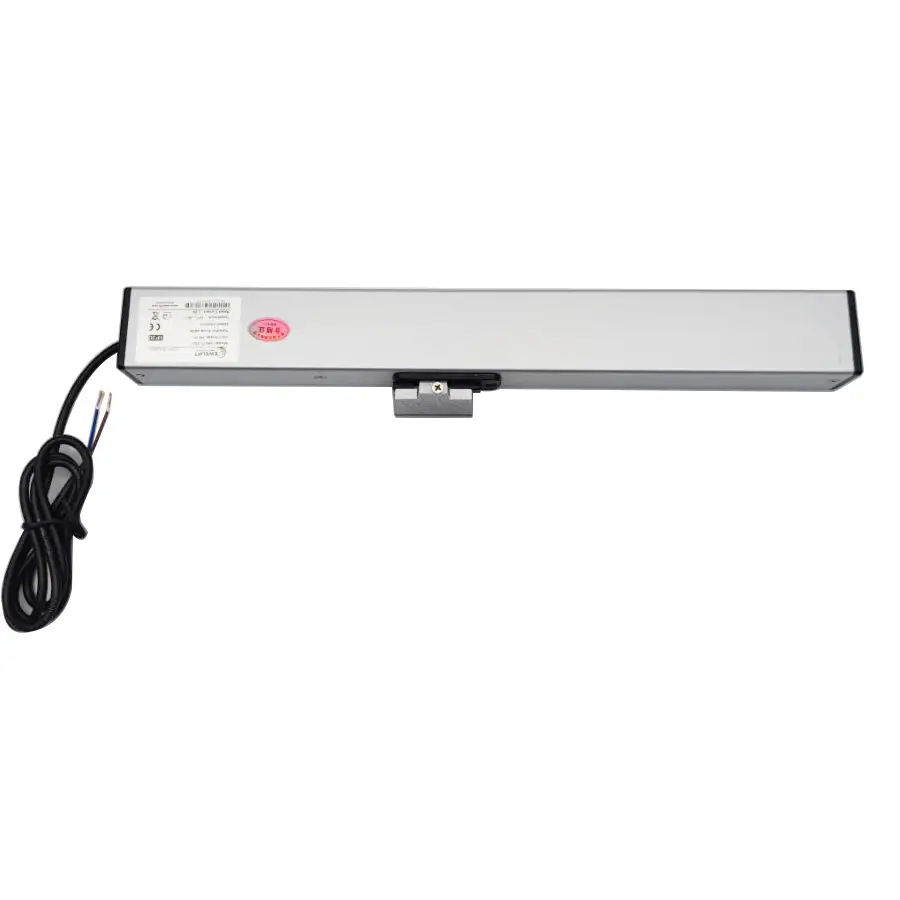

NKLT4 chain actuator is exquisite appearance design, all aluminum alloy shell .
Overload protection to prevent motor overload .
The chain is made of carbon steel or stainless steel with anti-corrosion treatment, suitable for long-term humid environment.
Itinerary and push-pull force can be customized according to customers’ needs.
Chain actuator window opener has become a popular option in modern buildings due to its many advantages. The chain actuator window opener is a motorized device that is used to open and close windows automatically. It is a small gadget that fits on the window frame and can be operated manually or via remote control.
The chain actuator window opener has several applications, especially in high-rise buildings. It is commonly used in commercial and residential buildings to provide proper ventilation and air conditioning .
The chain actuator window opener is safety and easy to install and maintain. It can be installed on any type of window frame and can be operated via remote control. The opener is also durable and requires minimal maintenance, making it a cost-effective solution for modern buildings.
Features
* Stroke length：100~1000mm
* Thrust and pull : 400N
* Locking force：2000N
* No load speed : 15mm/s
* Full load speed : 10mm/s
* Rated voltage：24VDC
* Rated current : 1.2A
* Rated power：28.8W
* Life time：more than 30000 times
* Window width：0.5m~1.5m
* IP Grade：IP32
* Operating Temperature：-10℃~+60℃
* Overload protection

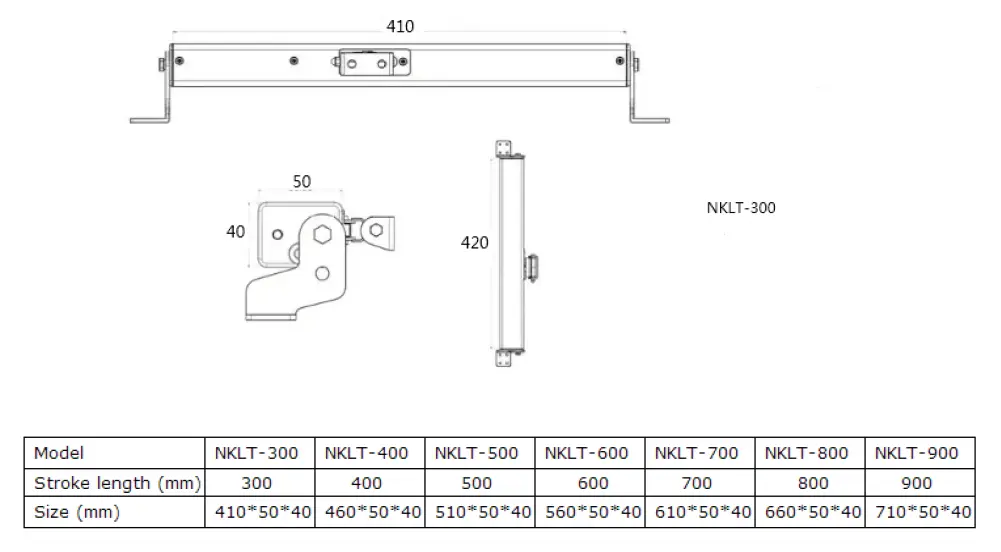

NKLT4 Dimensions
