Introduction

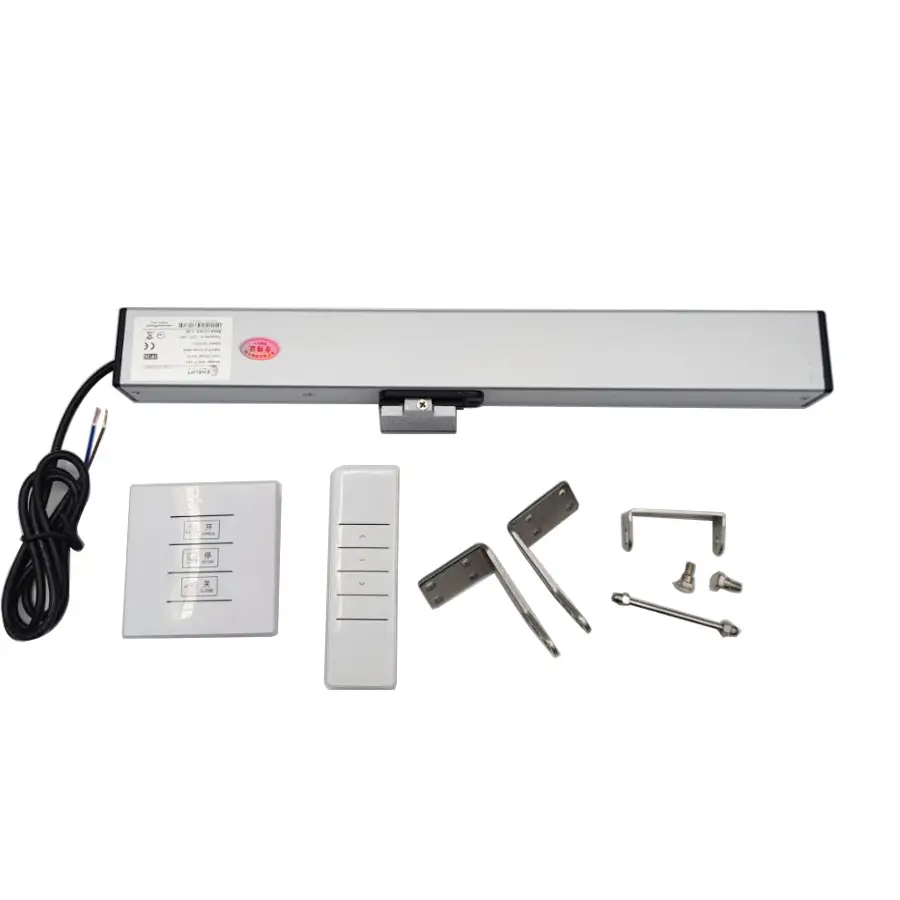

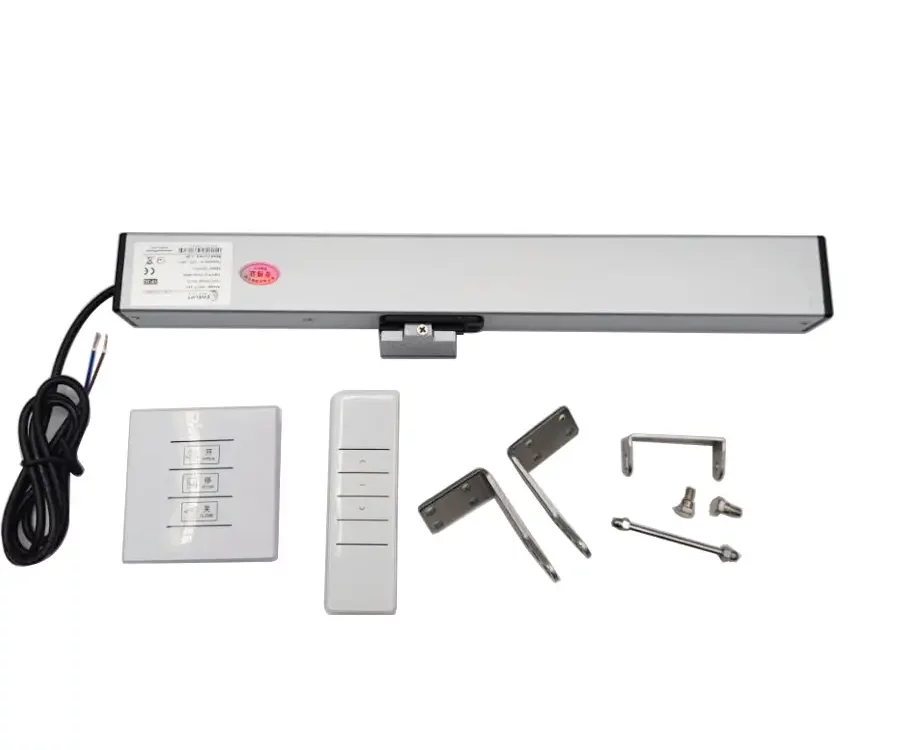

NKLT6 chain actuator is exquisite appearance design, all aluminum alloy shell .
Overload protection to prevent motor overload .
The chain is made of carbon steel or stainless steel with anti-corrosion treatment, suitable for long-term humid environment.
Itinerary and push-pull force can be customized according to customers’ needs.
Chain actuator window opener has become a popular option in modern buildings due to its many advantages. The chain actuator window opener is a motorized device that is used to open and close windows automatically. It is a small gadget that fits on the window frame and can be operated manually or via remote control.
The chain actuator window opener has several applications, especially in high-rise buildings. It is commonly used in commercial and residential buildings to provide proper ventilation and air conditioning .
The chain actuator window opener is safety and easy to install and maintain. It can be installed on any type of window frame and can be operated via remote control. The opener is also durable and requires minimal maintenance, making it a cost-effective solution for modern buildings.
Video of Chain Actuator NKLT6
Features
-
Wide Stroke Range: Adjustable stroke length from 100 to 1000 mm, suitable for various window sizes and opening requirements.
-
Strong Thrust & Pull Force: Delivers 600N push and pull force, ensuring stable and reliable window operation.
-
High Locking Force: 3000N locking force provides excellent resistance against wind load and external pressure.
-
Optimized Operating Speed:
-
No-load speed: up to 22 mm/s
-
Full-load speed: 15 mm/s, balancing speed and torque under working conditions.
-
-
Safe Low Voltage Operation: Powered by 24V DC, ideal for building automation and safety systems.
-
Energy-Efficient Performance:
-
Rated current: 1.5A
-
Rated power: 36W
-
-
Long Service Life: Designed for durability with a lifespan of over 30,000 operating cycles.
-
Recommended Window Width: Suitable for windows 0.5 m to 1.5 m wide (depending on weight and installation method).
-
Protection Class: IP32, suitable for indoor and sheltered outdoor installations.
-
Wide Operating Temperature Range: Reliable operation from -10℃ to +60℃.
-
Built-in Overload Protection: Automatically cuts off power under overload conditions to protect the actuator and window system.
Technical Specifications of Chain Actuator NKLT6
| Model | NKLT4 | ||||||
| Stroke Length(mm) | 300 | 400 | 500 | 600 | 700 | 800 | 900 |
| size(mm) | 410*50*40 | 460*50*40 | 510*50*40 | 560*50*40 | 610*50*40 | 660*50*40 | 710*50*40 |
| Dynamic Load push(N) | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| lnput(VDC) | 24V | ||||||
| Speed at No Load(mm/s) | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Speed at Full Load(mm/s) | 10 | 10 | 10 | 10 | 10 | 10 | 10 |

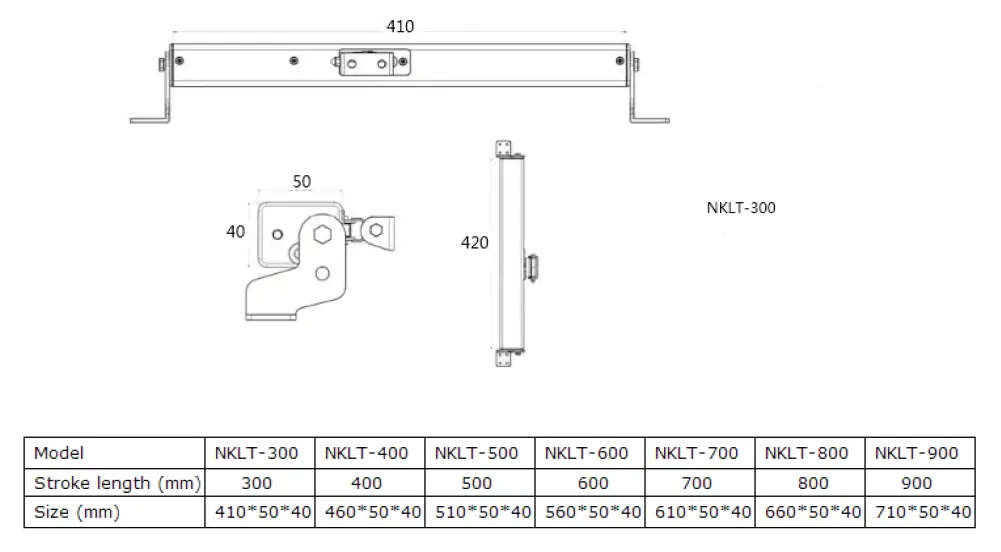

Chain Actuator NKLT6 Mechanical Dimensions
Chain Actuator NKLT6 Datasheet
Applications
Typical Applications of 24V 600N Chain Actuator Window Opener
This 24V DC chain actuator is designed for automatic window opening and ventilation control in various building and industrial environments, offering reliable performance and stable thrust output.
-
Residential & Commercial Buildings
Suitable for automated ventilation of windows in homes, offices, schools, hospitals, and shopping centers. -
Natural Ventilation Systems
Ideal for integration into natural ventilation and smoke exhaust systems, improving indoor air quality and airflow efficiency. -
Smart Building & BMS Integration
Compatible with building management systems (BMS) and external control units for centralized or remote window control. -
Greenhouses & Agricultural Facilities
Used for automatic window opening in greenhouses to regulate temperature and humidity. -
Industrial & Utility Rooms
Applicable for ventilation windows in factories, warehouses, and equipment rooms where stable and durable operation is required.
Application suitability depends on window weight, installation method, and environmental conditions.
FAQ
A1: This actuator is suitable for most top-hung, bottom-hung, and outward-opening windows used in residential, commercial, and industrial buildings. Final suitability depends on window weight and installation configuration.
A2: The recommended window width is 0.5 m to 1.5 m. Actual performance may vary depending on window weight, opening angle, and installation position.
A3: Yes. The actuator operates on 24V DC and can be connected to compatible control units, switches, or building automation systems for centralized or remote control.
A4: Yes. This model is equipped with built-in overload protection, which helps prevent damage to the actuator and window mechanism in case of excessive load.
A5: Yes. The actuator supports customizable stroke lengths from 100 mm to 1000 mm, depending on project requirements.
A6: The actuator has an IP32 protection rating, making it suitable for indoor use or sheltered outdoor environments. For direct exposure to rain or harsh weather, additional protection is recommended.
