3 stage electric lifting column
600n column lift tv lift
Introduction
NKLC5 lifting column is designed for a wide range of workstation applications,like , tatami ,computer workstations, work benches, assembly desks, kitchens. With the Hall sensors built-in, it can be operated either as single column or several columns in synchronized movement by choosing a control box with micro-processor
Features
Max load 1000N
Speed 14mm/s
Height range : 310mm~730mm
Anti-collision function: 360° no dead angle anti-clamp.
24V safe voltage:the human body touchable voltage is 24V.
2.4G remote controller:The remote controller uses automatic frequency modulation technology and will not interfere with each other.
| Product name | NKLC5 tatami lift column |
| Dynamic Load Push(N) | 1000 |
| Static Load Push *(N) | 1000 |
| Input(VAC) | 110V~240V AC |
| Height range | 310mm~730mm |
| Speed at Full Load(mm/s) | 14 |
| Stroke Length(mm) | 420 |
| Colour | Sliver |
| Mounting | By screws on the top and bottom plate |
| Overload Protection | Yes |
| Limit Switch | Build-in |
| Duty Cycle | 10%,max.2min. continuous use |
| IP Grade | IP54 |
| Operation Temperature | +5℃~ +40℃ |
| Standard | CE |

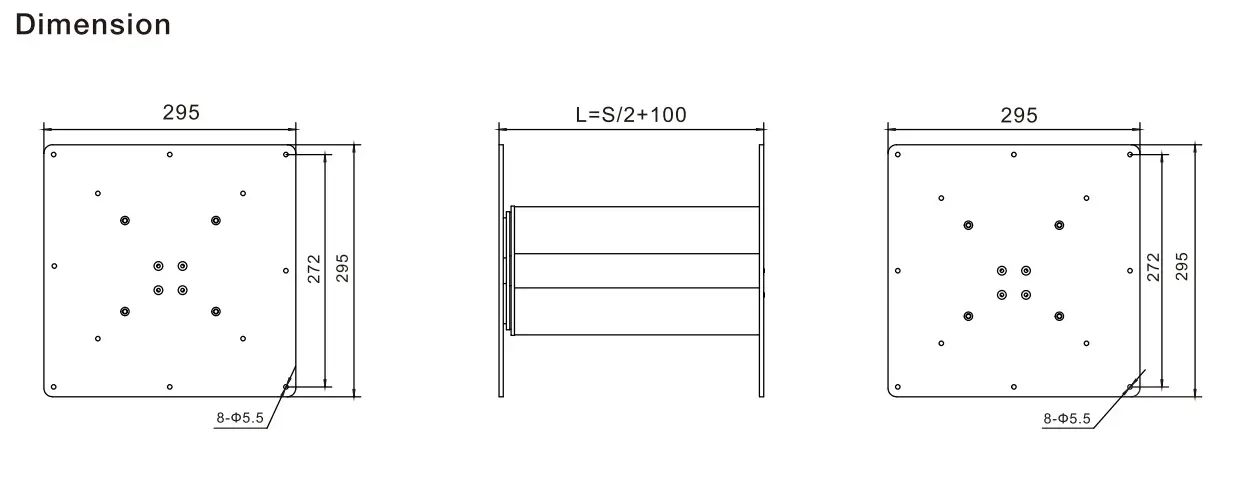

NKLC5 Dimensions
