Introduction

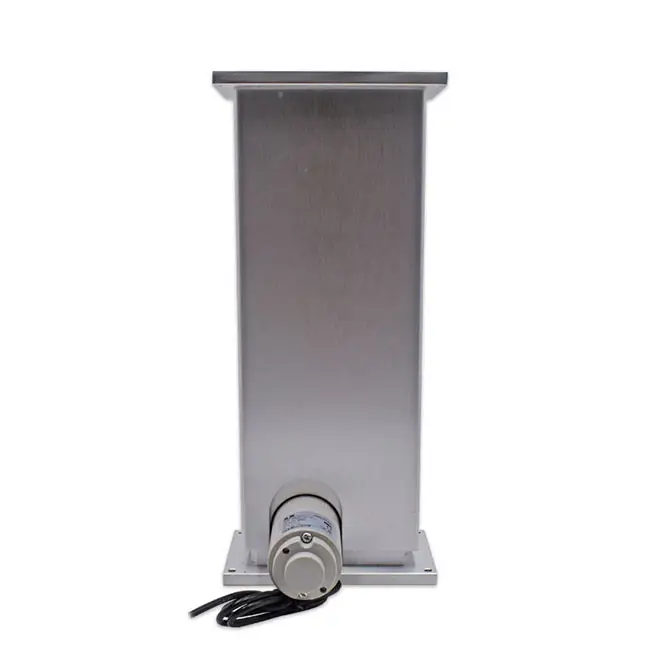

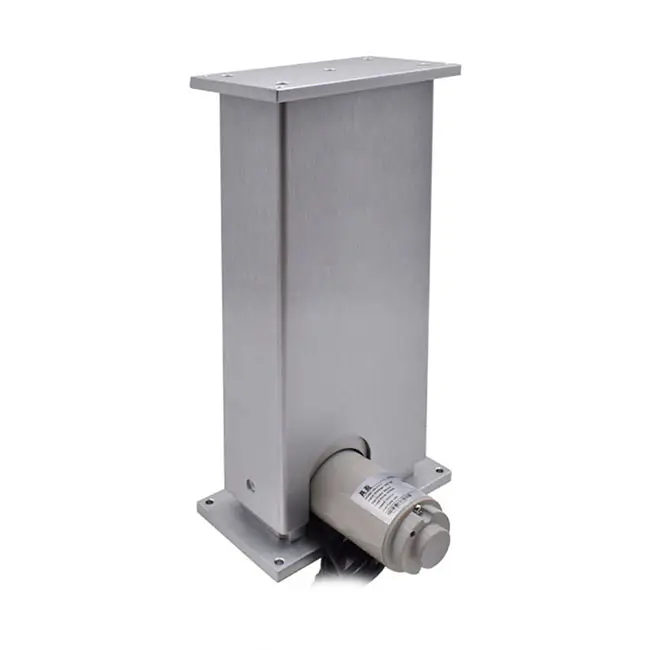

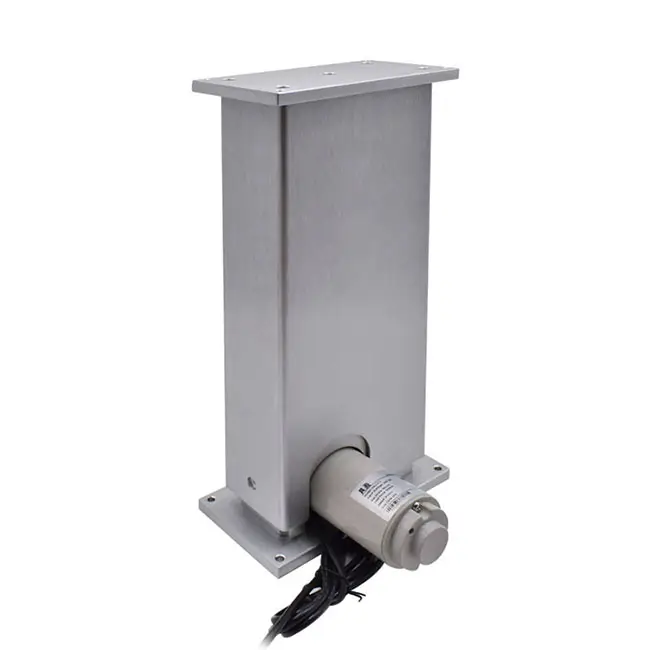

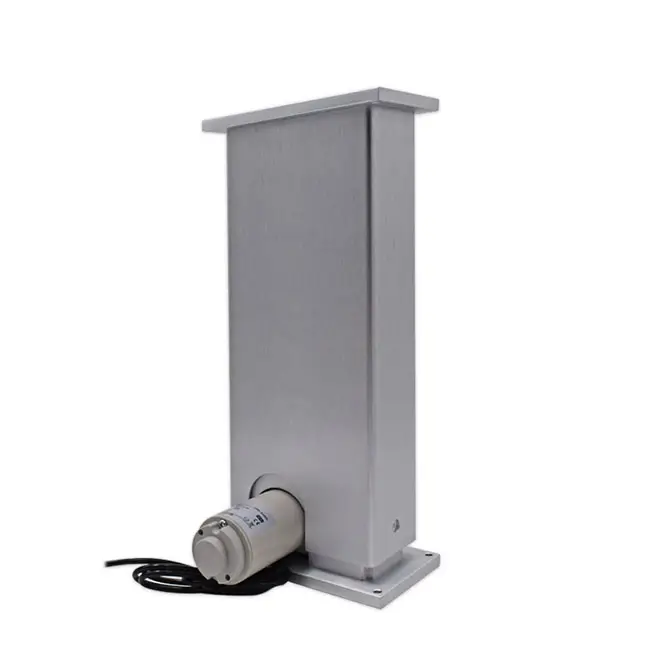

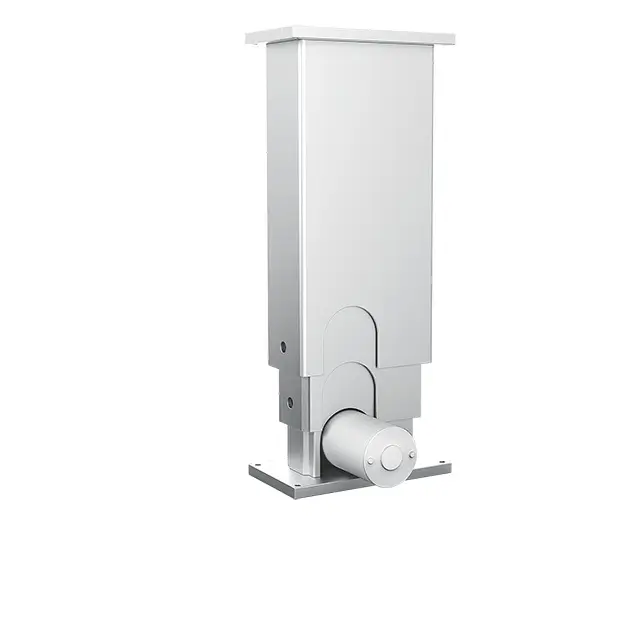

NKLC4-3 lifting column is designed for a wide range of medical bed , dental chair , workstation applications, like computer workstations, work benches, assembly desks or kitchens . With the Hall sensors built-in, it can be operated either as single column or several columns in synchronized movement by choosing a control box with micro-processor .
Features
Motor: 24VDC
Load in push: 2000N
Protection class: IP43
Colour:anodised aluminium
Built-in electrical limited switch-not adjustable
Noise level: 48dB
Duty Cycle: 10%, max. 2min.continuous working and 18 min.off
Operating Temperature: +5 ℃ to +40℃
Option: With hall sensor(Apply for synchronize or memory function)
| Product model | NKLC4-3 lift column | |
| Dynamic Load Push(N) | 2000 | |
| Static Load Push *(N) | 2000 | |
| Input(VDC) | 24 | 12 |
| Speed at Full Load(mm/s) | 10 | 7 |
| Stroke Length(mm) | 100~400 (option >400) | |
| Colour | Sliver | |
| Mounting | By screws on the top and bottom plate | |
| Overload Protection | Yes | |
| Limit Switch | Build-in | |
| Duty Cycle | 10%,max.2min. continuous use | |
| IP Grade | IP43 | |
| Operation Temperature | +5℃~ +40℃ | |
| Optional Feature | Hall sensor option | |
| Standard | CE | |

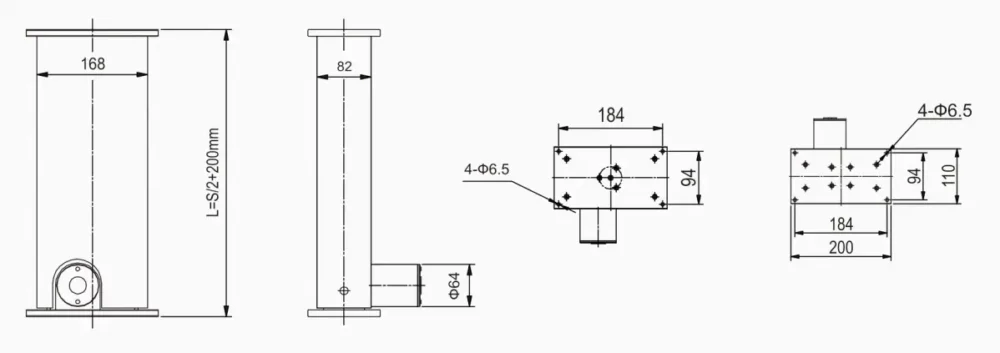

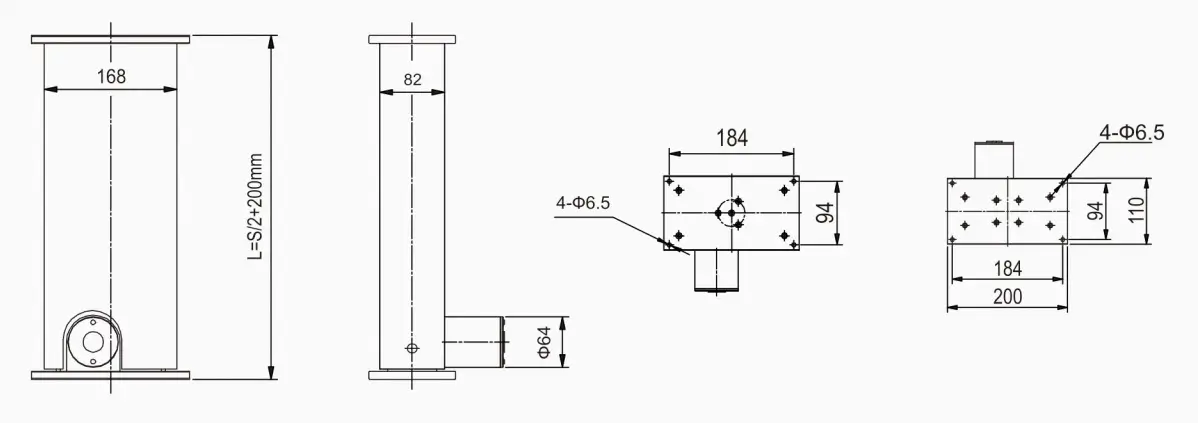

NKLC4-3 Dimensions
